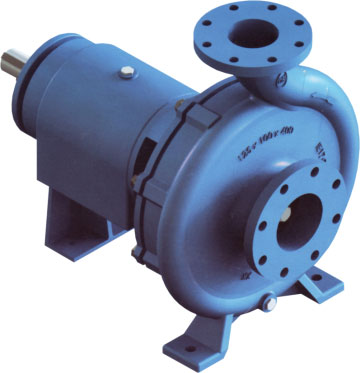

Centrifugal Suction Pumps
Q: 550 M3/HR, H: 140 M
Features
- Designed to allow interchangeability of their component between all individual pump sizes.
- Minimizes shaft deflection maximizes bearing and mechanical seal life.
- Heavy duty bearing ensures long life
- Back pull out design facilitates dismantling the pump without disconnecting the pump casing from the pipes.
- Dimensions and characteristics according to DIN 24255 standards
- Available both in mechanical seal and soft packed stuffing box design.
Applications
- Water Supply
- Irrigation
- Pressure Boosting
- Fire Protection
- Heating and air conditioning systems
- Circulation and transfer clean, chemically non – aggressive water & liquids
- General Industrial services
- Water Supply to swimming pool, fountains.
Operating Limits
| Outlet Size range | DN32 to DN150mm |
| Flow range | upto 550 m3/hr |
| Total Head range | Upto 100m |
| Operating temperature with soft packed stuffing box | 900C |
| Operating temperature with mechanical seal | 900C |
| Maximum working pressure | 16bar |
Material of Construction
| Material | Type - C | Type – B |
| Pump Casing | Cast Iron | Cast Iron |
| Impellers | Cast Iron | Bronze |
| Shaft | EN – 8 | EN – 8 |
| Sleeve | AISI – 410 | AISI – 410 |
