B.E. Pumps Pvt. Ltd.

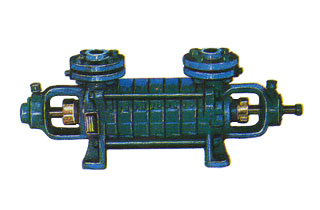

Self Priming Pumps
Type : "A" High Head
Applications
- Transfer of Liquid Containing Air or Gas
- Boiler Feed
- Transfer of Oil, Industrial Water Supply, Sprinklers, Car Washing etc.
- Various Marine Applications
Technical Data
| Capacity | Max. 880 L.P.M. |
| Head | Max. 260 M. |
| Speed | 1450 R.P.M. |
| Temperature | Max. 600C for Standard Pump Max. 1000 for Hot Water Pump 'H' |
| Suction Lift | Max. 8 M. |
| Rotation | Clockwise when looking from drive end. Anti-Clockwise in 'RR' Pump. |
Material
| Suction Cover Pump Casing Stuffing Box Impeller |
Close Grained Cast Iron |
| Shaft | Stainless Steel |
| Shaft Sealing | Gland Packing |
| Special Materials also Available | |
Features
- Horizontal, lateral channel, self-priming design for continuous operation handling clear liquid free from any suspended particle.
- Suction and Delivery branches are vertical and flanges are round. Counter flanges are provided with BSP thread.
- Grease lubricated ball bearings are provided.
- For special applications mechanical seal can be fitted.
