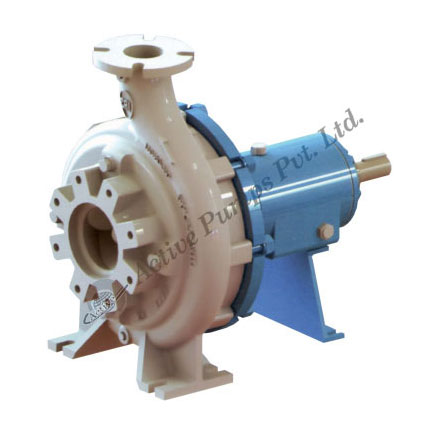

Paper, Pulp & Process Pumps
Q: 3400 M3/HR. H: 90 M
Applications
- Paper Stock
- Fibrous Pulp
- White,black & Green Liquors
- Chemical,process & Fibrous Liquors
- De-watering 7 De-inking Liquors
- Air-entrained Liquors
- Corrosive & Non-corrosive Liquors
- Suspended Solids
- Effluents
Salient Features
- High Quality
- Better Efficiency
- Heavy Duty
- Wide Range
- Prompt Pre & Post Sales Service
- Customized Designs
- Vertical & Horizontal
- Configuration
Ecp & Ecpv Series Pump Range ~ max. Performance Guide
Pump Size Flow Rate = M3/hour & Head = Metres & Speed = Rpm
| GROUP 1 PUMPS | ||||||
| 6x3-14 | Maximum | = | 200/60 | Maximum | = | 1800 |
| 6x4-14 | Flow/Head | = | 340/60 | Speed | = | 1800 |
| GROUP 2 PUMPS | ||||||
| 8x4-17 | 520/90 | 1800 | ||||
| 8x5-17 | Maximum | 680/90 | Maximum | = | 1800 | |
| 8x6-17 | Flow/Head | = | 1000/90 | Speed | 1800 | |
| 10x8-17 | 1200/80 | 1800 | ||||
| 12x10-17 | 1500/75 | 1800 | ||||
| GROUP 3 PUMPS | ||||||
| 8x6-21 | 850/60 | 1800 | 1200 | |||
| 10x8-21 | Maximum | 1200/60 | Maximum | = | 1200 | |
| 12x10-21 | Flow/Head | = | 1700/55 | Speed | 1200 | |
| 14x12-21 | 2500/50 | 1200 | ||||
| 16x14-21 | 3400/50 | 1200 | ||||
Material of Construction
| Description | Material of Construction | |||
| Pump Casing | SS 316 | CI | SS 304 | CI |
| Impeller (Semi – open) | SS 316 | SS 316 | SS 304 | SS 304 |
| Side Plate | SS 316 | CI | SS 304 | CI |
| Pump Shaft | EN – 8 | EN – 8 | EN – 8 | EN – 8 |
| Stuffing Box & Gland Packing | SS 316 | CI | SS 304 | CI |
| Shaft Sleeve | SS 316 | SS 316 | SS 316 | SS 316 |
| Bearing Housing with covers & Connecting Frame | Cast Iron | Cast Iron | Cast Iron | Cast Iron |
