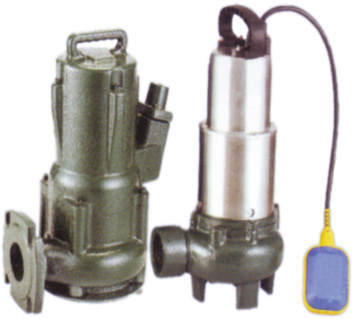

Sewage & Drainage Pumps
Q : 4200 M3/HR, H : 40 M, T : oC,SOLD CAP,-120MM
Salient Features
Heavy Duty Bearings, High Efficiency copper wound motor, In built capacitor for single phase and contactor for three phase which eliminates starter, control box, safe and quite operation, most reliable and hard wearing, tailor – made designs, multipurpose applications, easy and cost effective serviceability.
Applications
Drainage sewage motor from hotels, houses, commercial buildings, complexes, etc., Pumping waste water in Industries, tunnels & mines, Pumping sewage water from stock farm and manhole sewer, sewage treatment plants (STP), Pumping municipal sewage water, septic tanks, leather factories.
Specifications
Speed | 2900 RPM |
Degree of Protection | IP 68 |
Motor Type | Dry (Rewindable) |
Impeller Type | Vortex / Semi Open |
Insulation Class | B/F (Optional) |
Version | A.C. 50 Hz (230V – 240V, 1Ph & 380V – 415V, 3 Ph) |
Direction of Rotation | Clock Wise |
Duty | S1 Continuous |
Pumped Liquid Characteristics
Max. Liquid Temp. | 40 Degree Celsius |
Max. Operating Pressure | 2.7 Kg/cm2 |
pH Value | 4 – 10 |
Available Delivery Size | 1 ½", 2" & DN 65 |
Solid Handling Capacity | 7, 30, 40 & 60 mm |
