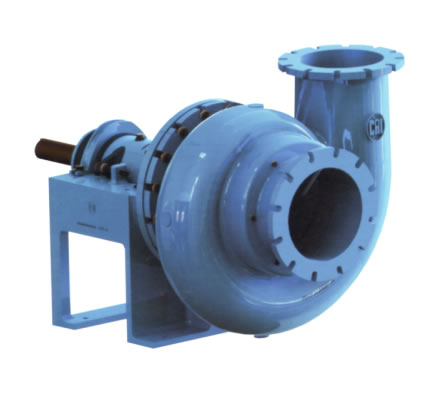

Hard Metal Slurry Pumps
Q: 3500 M3/HR. H: 120 M
Applications
- All Abrasive slurries & sludges
- Abrasive Chemical * Process Liquors
- Hard Solids Entrained Liquors
- Sand Filter Recovery
- Beach (Sand) Recovery & Diepersal
- Aggregate & Mineral Slurries
- Mineral & Ore Processing
- Cyclone Feed & Underflow
- Coal Preparation
- Coal & Ash Slurries
- Metal Waste Separation / Recovery
- Lime & Clay Slurries
- Classifier Underflow
- Dewatering, Washdown & Sluicing
- Highly Abrasive Solids in suspension
Salient Features
- High Quality
- Better Efficiency
- Heavy Duty
- Wide Range
- Prompt Pre & Post Sales Service
- Customized Designs
- Vertical & Horizontal Configuration
ECH & ECHV Series Pump Range ~ Max. Performance Guide
Pump Size Flow Rate = m3/hour & Head = meters & Speed = rpm
| GROUP 1 PUMPS | ||||||
| 4x3-12 | Maximum | = | 240/50 | Maximum | = | 2400 |
| 5x4-12 | Flow/Head | = | 300/60 | Speed | = | 2200 |
| GROUP 2 PUMPS | ||||||
| 5x4-17 | 460/110 | 2000 | ||||
| 6x5-17 | Maximum | 490/120 | Maximum | 2000 | ||
| 8x6-17 | Flow/Head | = | 1030/95 | Speed | = | 1800 |
| 10x8-17 | 1300/90 | 1800 | ||||
| 12x10-17 | 1800/60 | 1800 | ||||
| GROUP 3 PUMPS | ||||||
| 8x6-21 | 1000/100 | 1600 | ||||
| 10x8-21 | Maximum | 1300/75 | Maximum | = | 1300 | |
| 14x12-21 | Flow/Head | = | 2600/65 | Speed | 1300 | |
| 16x14-21 | 3500/50 | 1200 | ||||
| GROUP 4 PUMPS | ||||||
| 8x6-25 | ||||||
| Maximum | Maximum | |||||
| Flow/Head | = | 950/130 | Speed | = | 1500 | |
Material of Construction
| Description | Material of Construction | ||
| Pump Casing | Hi Chrome | Ni Hard | 2% CI |
| Impeller (Closed) | Hi Chrome | Ni Hard | 2% CI |
| Suction Wear Plate | Hi Chrome | Ni Hard | 2% CI |
| Rear Wear Plate | Hi Chrome | Ni Hard | 2% CI |
| Pump Shaft | EN – 8 | EN – 8 | EN – 8 |
| Shaft Sleeve | SS 316 | SS 316 | SS 316 |
| Stuffing Box & Gland | CI | CI | CI |
| Brg. Hsg with covers & Connecting Frame | CI | CI | CI |
